Payment Page

This document describes all flows and interfaces that are required for an integration of the GiroCheckout Payment Page.

This payment page allows for a much simpler integration of shops with GiroCheckout, without the need to configure each payment method separately within the shop. The GiroCheckout Payment Page offers the customer all payment methods available to the merchant for selection and then initializes the selected payment accordingly.

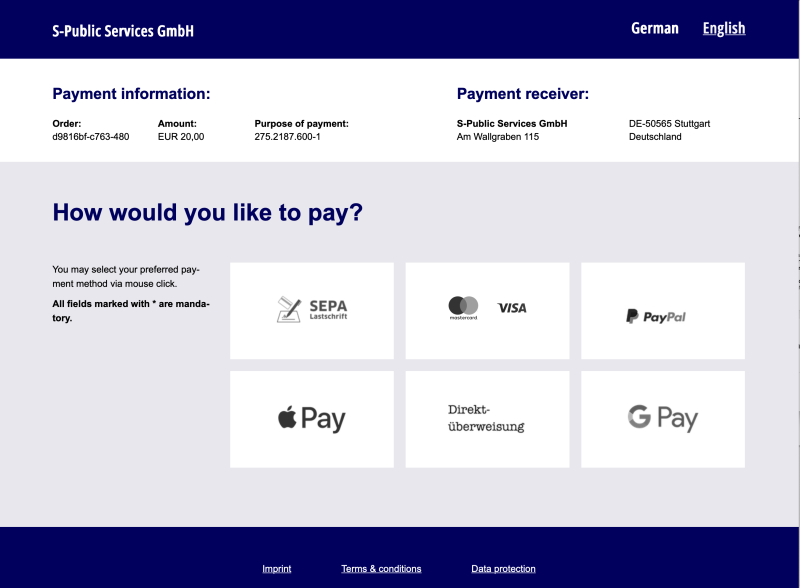

Example

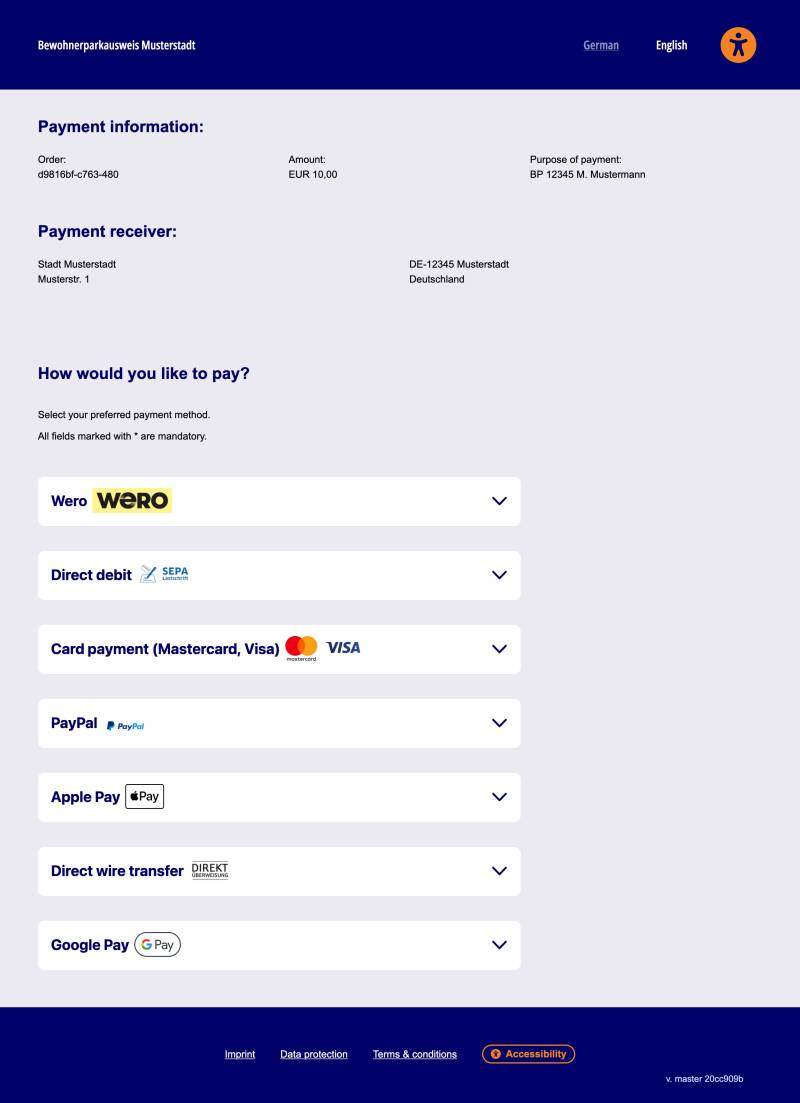

Example Payment Page

The following payment methods are currently supported:

  • giropay
  • eps
  • iDEAL
  • credit card
  • direct debit
  • direct debit with block file
  • direct debit with guarantee
  • PayPal
  • paydirekt
  • Sofort.

Payment initialization through the payment page

A payment page needs to be initialized so that a URL to the payment page can be generated. This payment page URL is the result of a successful payment page initialization. The customer must be redirected to this URL afterwards.

Provided by: GiroCheckout
Called by: Merchant

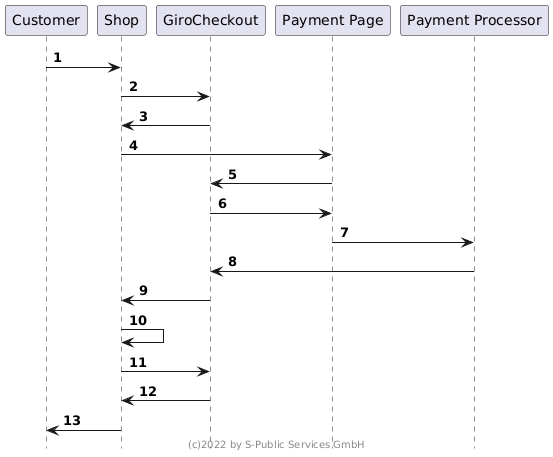

Workflow

PlantUML Graph

  1. Customer visits checkout section of the shop in order to pay for his order
  2. Shop initializes a paypage transaction (Initialization)
  3. GiroCheckout initializes transaction internally and returns paypage URL
  4. Shop redirects customer to the paypage, customer selects payment method
  5. Paypage initializes payment in GiroCheckout
  6. GiroCheckout returns URL of the payment form to the paypage
  7. Paypage redirects customer to the payment form of the payment processor, customer enters data and pays
  8. Payment processor informs GiroCheckout about transaction result
  9. GiroCheckout notifies shop about transaction result (Notification)
  10. Shop processes transaction result
  11. Shop sends HTTP status code to GiroCheckout
  12. GiroCheckout redirects customer back to the shop
  13. Shop displays result to customer

API functions

Project request

In case you have the requirement of only offering in your payment or donation page payment methods associated to certain projects in your GiroCockpit, and letting someone choose these methods programmatically, you may use this request to obtain a list of all your projects.

URL: https://payment.girosolution.de/girocheckout/api/v2/paypage/projects
Provided by: GiroSolution
Called by: Merchant

POST Parameters
Name Mandatory Type Description
merchantId Yes Integer Merchant ID of a Paypage project
projectId Yes Integer Project ID of a Paypage project
hash Yes String HMAC MD5 hash of all the parameter values in the call. See hash generation
Example
curl -d "merchantId=1234567" \
     -d "projectId=1234" \
     -d "hash=9d7cc3729790bfdbe68a7156bb4d386b" \
     https://payment.girosolution.de/girocheckout/api/v2/paypage/projects

Response

The response consists of a JSON object. The field rc returns an error code. If rc = 0 is returned, the call was successful. In the response, you receive the element “projects” that contains the available projects.

Parameters
Name Mandatory Type Description
rc Yes Integer Error codes
msg Yes String Additional information in case of an error
projects Optional Array List of the GiroCockpit projects with the elements Project Id (id), Projekt name (name), the number of the corresponding payment method (paymethod, see Payment methods) and the mode (mode) = TEST or LIVE.
HEADER Parameters
hash Yes String HMAC MD5 hash of all values of the response. See hash on response
Example
{"projects":[{"id":"12345","name":"iDEAL - ICEPAY","paymethod":"12","mode":"LIVE"},{"id":"12346","name":"giropay","paymethod":"1","mode":"TEST"},{"id":"12347","name":"Kreditkarte","paymethod":"11","mode":"TEST"}],"rc":0,"msg":""}

Initialization

POST Parameters

URL https://payment.girosolution.de/girocheckout/api/v2/paypage/init

Name Mandatory Type Description
merchantId Yes Integer Merchant ID of a Paypage project
projectId Yes Integer Project ID of a Paypage project
merchantTxId Yes String(255) Merchant's unique transaction ID
amount Yes Integer For currencies with decimals, specify the amount in the smallest currency unit, such as Cent, Penny
currency Yes String(3) Currency of the transaction, according to ISO 4217.
EUR = Euro
purpose Yes String(27) Purpose of the transaction. This information is displayed on the card settlement or bank statement. Only SEPA compliant characters are allowed (see SEPA compliant characters). If pagetype=2 and projectlist is not empty, the placeholder {SPENDENPROJEKT} may be used, which is then filled with the name of the user-selected project.
The content of this field (first 20 characters) is also used to fill the orderid in case of the payment method Paydirekt, if it is not explicitly specified (see parameter orderid).
description Optional String(120) Description for the payment. Is only displayed on the payment page. Allowed characters see Allowed description characters
pagetype Optional Integer Type of the payment page to be generated: 0=normal API-Paypage (compatible to previous paymnent pages, default), 1=Payment page, 2=Donation page
expirydate Optional String(10) Expiration date: Empty=payment page is always valid, YYYY-MM-DD=Date in format Year-Month-Day, payment page will be valid up to this date.
The option 'once' is deprecated and shouldn't be used anymore because it will not be available in a future API version. Please use single=2 instead.
single Optional Integer Controls, whether and how the link may be reused.
0 = Link may be used as often as needed (default)
1 = Allows only one payment attempt for this payment link, no matter if successful or not
2 = Payment page may only be used for one successful payment, afterwards it will be invalidated
type Optional String(4) Transaction type (see Transaction types)
SALE = Immediate payment (default)
AUTH = Amount reservation (not available for all payment methods)
locale Optional String(4) Language of the payment page
de = German (default)
en = English
paymethods Optional String Comma-separated list of the payment methods to be offered. If parameter is empty or not specified, all methods enabled by the merchant in GiroCockpit will be displayed. Specify each payment method as a number, see Payment methods
payprojects Optional String Comma-separated list of the project IDs, whose payment methods are to be available on the payment page. If nothing is specified here, all projects of the merchant are used. The project IDs may either be obtained manually through GiroCockpit, or programatically via a call to the function Project Request.
organization Optional String(70)Name of the organization offering the payment or donation page. If none specified, the merchant name from GiroCockpit is used.
freeamount Optional Integer Defines whether the payment page user may freely enter an amount (=1) or not (=0, default).
fixedvalues Optional String JSON-encoded string that contains an array of all the amounts among which the user may select the one to be paid/donated, e.g. '[“10000”,”20000”,”50050”]', all amounts are to be specified in cents. If this field is empty, the content of the amount field is used as a only possible value. If this field contains values, the amount field is ignored!
minamount Optional Integer Minimum accepted value if free amount entry is allowed, i.e. freeamount=1. If this value is omitted, the default is 100 (meaning 1,00). Amount specified in cents.
maxamount Optional Integer Maximum accepted value if free amount entry is allowed, i.e. freeamount=1.
orderid Optional String(20) Only used when payment method is Paydirekt. If empty, the orderid is generated from the purpose field. Only sepa-compliant characters are allowed (see SEPA-compliant characters)
projectlist Optional String JSON-encoded string, that contains an array of projects (strings=project names), for which the donation page accepts donations. Only makes sense if pagetype=2.
pkn Optional String This field allows the initialization of a new transaction without having to input the credit card or direct debit data again (recurring payments).
create = generate new pseudo card number for the payment data (credit card or bank data) used in this transaction.
test Yes Integer 1 = Display payment methods that are in test mode
0 = Display payment methods that are in Live mode
paydirektShippingFirstName Optional String(100) First name for shipping address (only paydirekt PHYSICAL orders)
paydirektShippingLastName Optional String(100) Last name for shipping address (only paydirekt PHYSICAL orders)
paydirektShippingZipCode Optional String(10) Zip code for shipping address (only paydirekt PHYSICAL orders)
paydirektShippingCity Optional String(100) City for shipping address (only paydirekt PHYSICAL orders)
paydirektShippingCountry Optional String(2) Country code (ISO 2 chars) for shipping address (only paydirekt PHYSICAL orders)
successUrl Optional String URL where the customer is redirected to after successful payment.
backUrl Optional String URL where the customer is redirected to after clicking the Back button.
failUrl Optional String URL where the customer is redirected to after a failed payment.
notifyUrl Optional String URL where the payment notification is sent to via server to server communication.
hash Yes String HMAC MD5 hash of all the parameter values in the call. See hash generation

SEPA compliant characters

In SEPA payments, according to Annex 3 of this document, only characters of the limited SWIFT Latin characters set are allowed:

  • a b c d e f g h i j k l m n o p q r s t u v w x y z
  • A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
  • 0 1 2 3 4 5 6 7 8 9
  • ' : ? , - ( + . ) / |

Allowed description characters

The following characters are allowed in the description text (field description):

  • All characrters of all languages, including German umlauts, Spanisch accented characters and so on.
  • All punctuation characters
  • All numerical digits
  • Symbols referring to currencies (e.g. $ and € etc.)
  • Length between 1 and 60 characters

Payment methods

These are the allowed values for the payment methods specified in the parameter paymethods:

ID Payment method
1 giropay
2 eps
6 direct debit
7 direct debit with block file
8 direct debit with guarantee
11 credit card
12 iDEAL
14 PayPal
23 paydirekt
27 Sofort.
Example
curl -d "merchantId=1234567" \
     -d "projectId=1234" \
     -d "merchantTxId=1234567890" \
     -d "amount=100" \
     -d "currency=EUR" \
     -d "purpose=Beispieltransaktion" \
     -d "description=Fahrradleuchte klein" \
     -d "type=SALE" \
     -d "locale=de" \
     -d "paymethods=1,2,6,11,14" \
     -d "test=1" \
     -d "successUrl=http://www.my-domain.de/girocheckout/success" \
     -d "backUrl=http://www.my-domain.de/girocheckout/back" \
     -d "failUrl=http://www.my-domain.de/girocheckout/fail" \
     -d "notifyUrl=http://www.my-domain.de/girocheckout/notify" \
     -d "hash=9d7cc3729790bfdbe68a7156bb4d386b" \
     https://payment.girosolution.de/girocheckout/api/v2/paypage/init

Response

The response consists of a JSON object. The field rc returns an error code. If rc = 0 is returned, the transaction was successfully initialized. As a response, you receive a reference number for the payment page and the redirect URL that leads to the form.

Parameters
Name Mandatory Type Description
rc Yes Integer Error codes
msg Yes String Additional information in case of an error
reference Optional String Unique payment page ID
url Optional String URL to the payment page, that the customer is to be redirected to.
HEADER Parameters
hash Yes String HMAC MD5 hash of all values of the response. See hash on response
Example in case of success

hash : 6c4da0504e8e6a359c7f2df86cb5318d

{"reference":"4f88b6c8-6209-4c96-a450-b6de22633f6b","url":"http:\/\/pay.girosolution.de\/v1\/paypage\/en\/EG-ddvXSrAHmXRClBeamKGAyzXU-uAYbNYFLQ3uz_zj_J4rYCb0GIrWIQ-H_g8h3_-yf3WvSenh2Dg6TLhmTAA","rc":0,"msg":""}
Example in case of failure

hash : f55ce87e132ebb7eb20004c6b186ce09

{"reference":null,"redirect":null,"rc":5030,"msg":"Betrag ungültig"}

Notification about transaction result

The result of a transaction is transmitted on 2 parallel paths. The notification and the redirect.

Notification

The first communication path is a host to host message sent to the URL specified in the parameter notifyUrl. This notification is used to inform the merchant about the result of the transaction, even if the buyer does not return to the shop page. This information can and should be used to update the transaction status in the shop. The result of the transaction can be found in the field gcResultPayment.

Request

URL: notifyUrl from the payment page initialization
Provided by: Merchant
Called by: GiroCheckout
Method: GET

Name Mandatory Type Description
gcPaymethod Yes Integer ID of the payment method of the transaction
gcType Yes String Transaction type:
SALE
AUTH
gcProjectId Yes String GiroCheckout project ID used for the transaction.
gcReference Yes String GiroCheckout transaction ID
gcMerchantTxId Yes String Merchant transaction ID
gcBackendTxId Yes String Payment processor transaction ID
gcAmount Yes Integer For currencies with decimals, specify the amount in the smallest currency unit, such as Cent, Penny
gcCurrency Yes String Currency
gcResultPayment Yes Integer Payment result codes
gcPkn Optional String Pseudo card number if pkn is active
gcCardnumber Optional String Masked credit card number if pkn is active
gcCardExpDate Optional String Credit card expiration date in the format month/year if pkn is active
gcAccountHolder Optional String Account holder for direct debit if pkn is active
gcIban Optional String IBAN for direct debit if pkn is active
gcHash Yes String HMAC MD5 hash on all values of the call. See hash generation

Redirect

The second communication path is the redirection of the buyer within his/her browser to one of the three redirection URLs specified during initialization:

  • successUrl: For successful payments.
  • failUrl: For failed payments.
  • backUrl: When the buyer has chosen not to go through with the payment and has clicked the cancel button on the payment information page instead.

All 3 URLs are called using the POST method and contain the same parameters described above for the notification call.
